WHAT’S IN THE BOX:

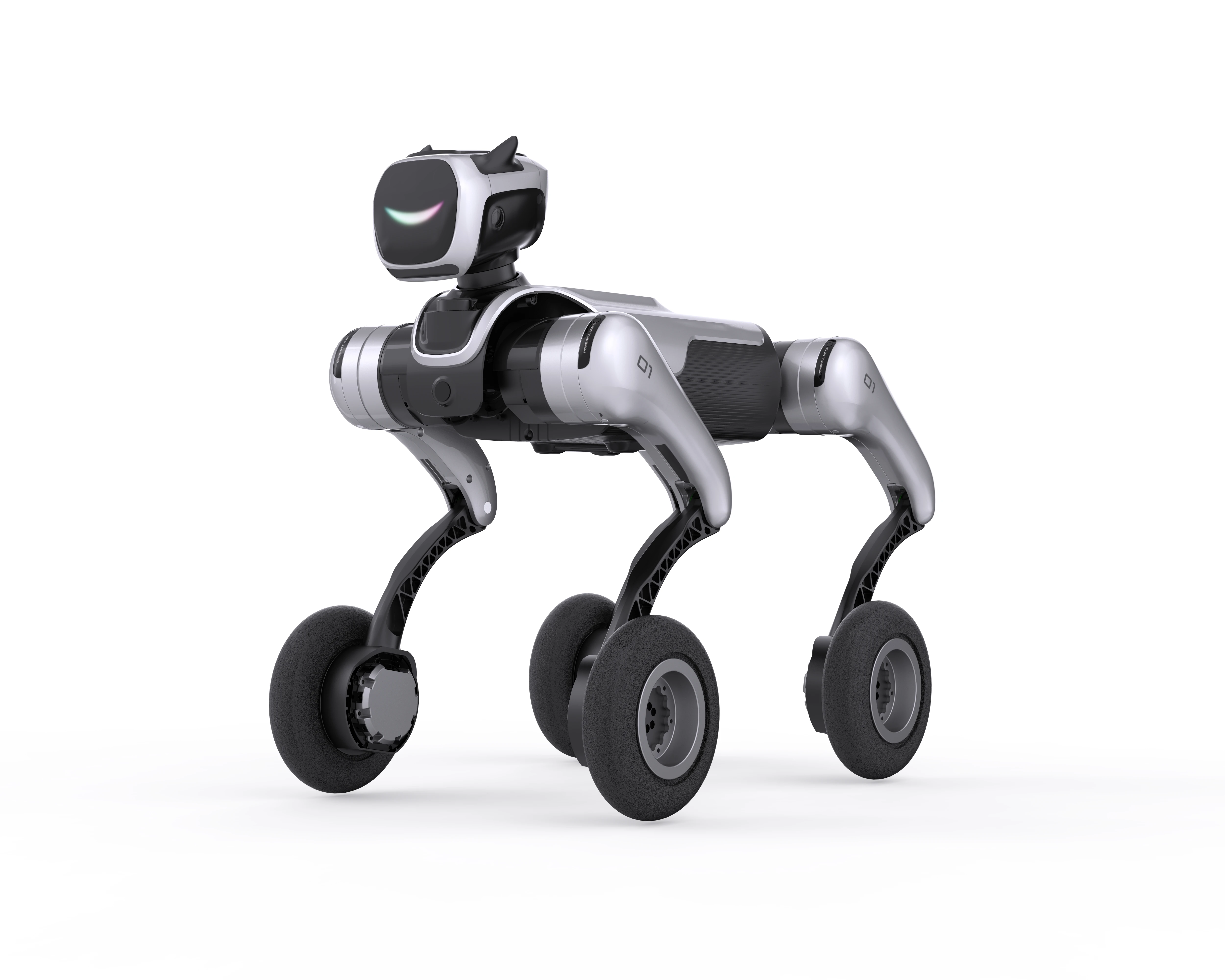

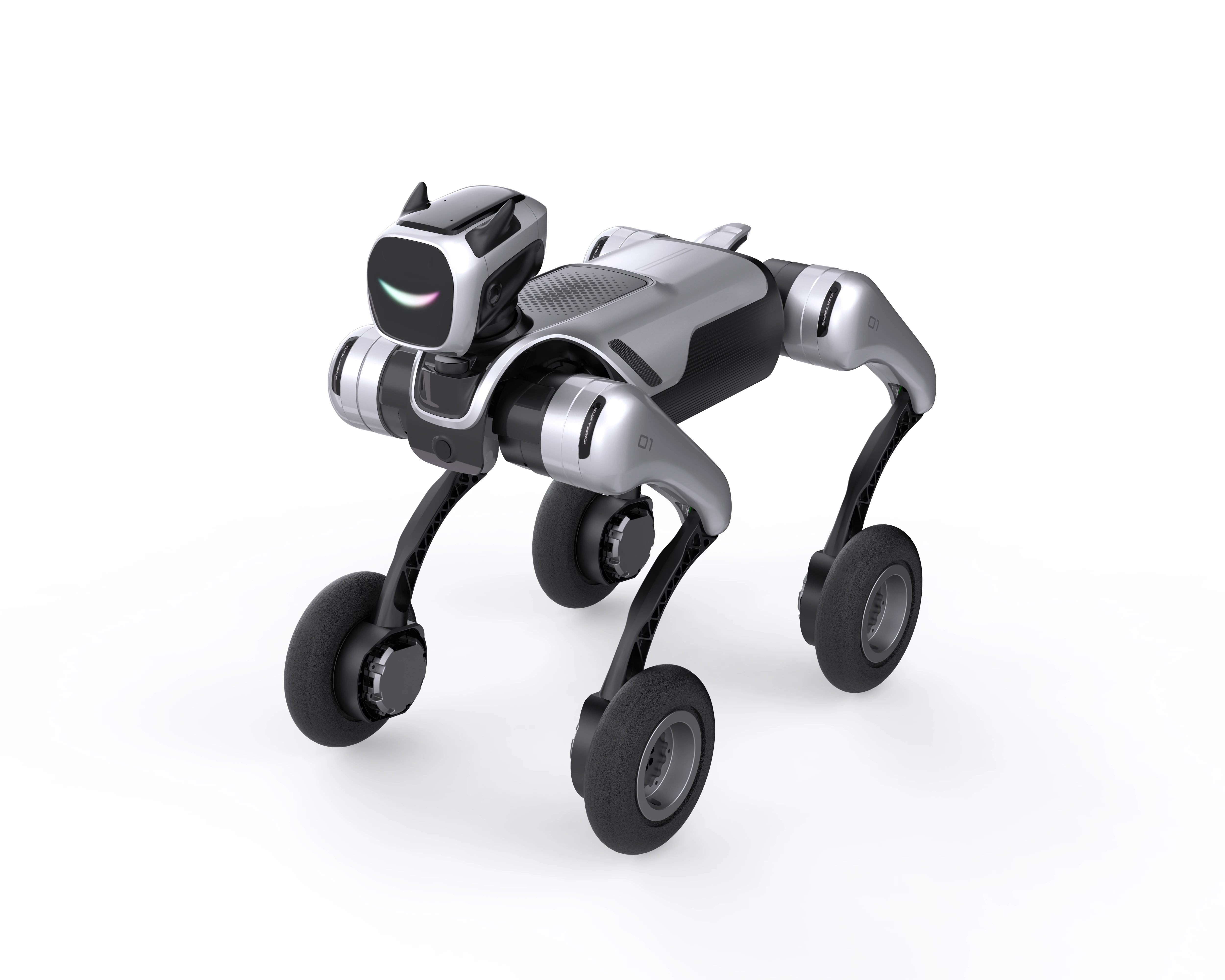

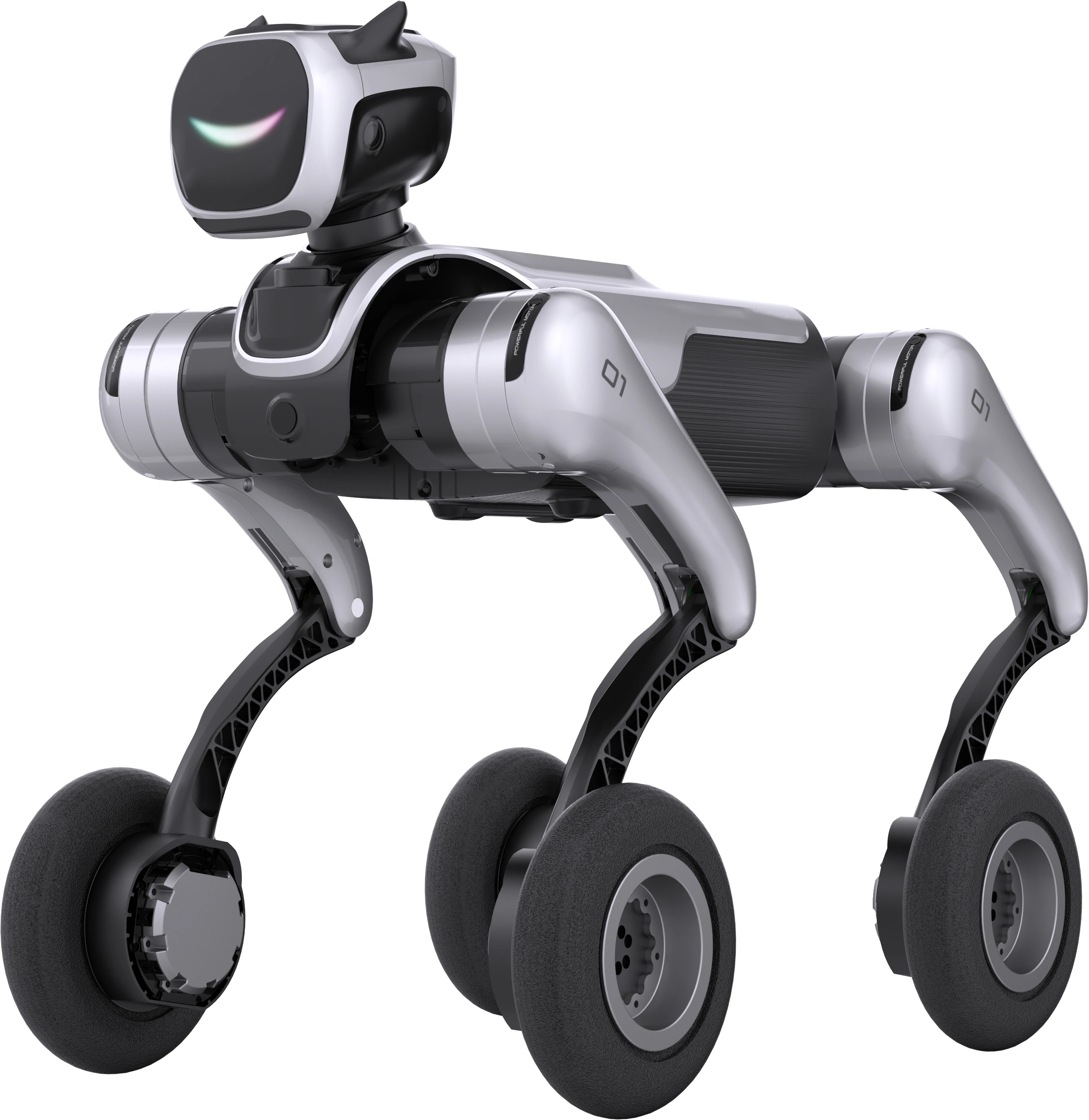

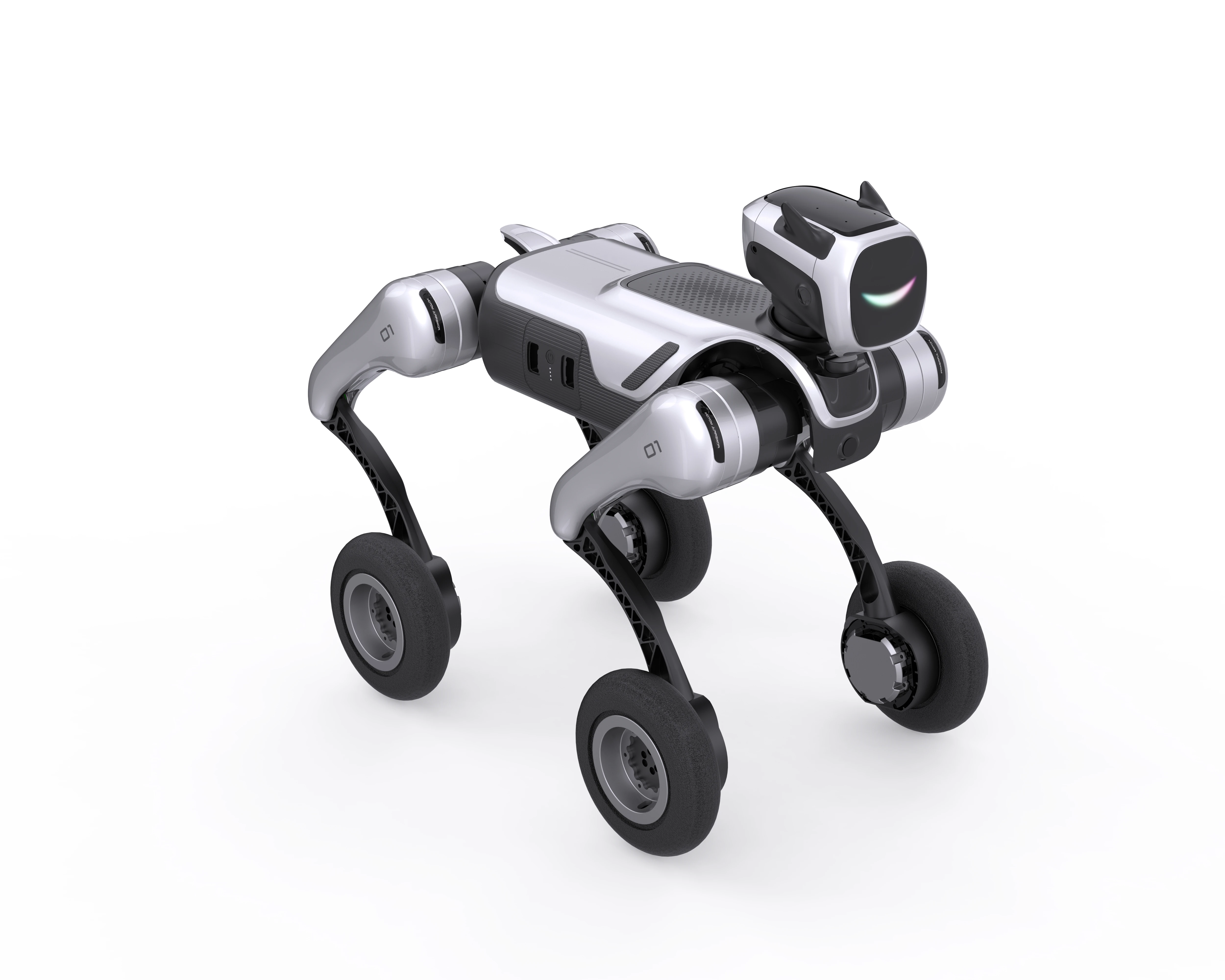

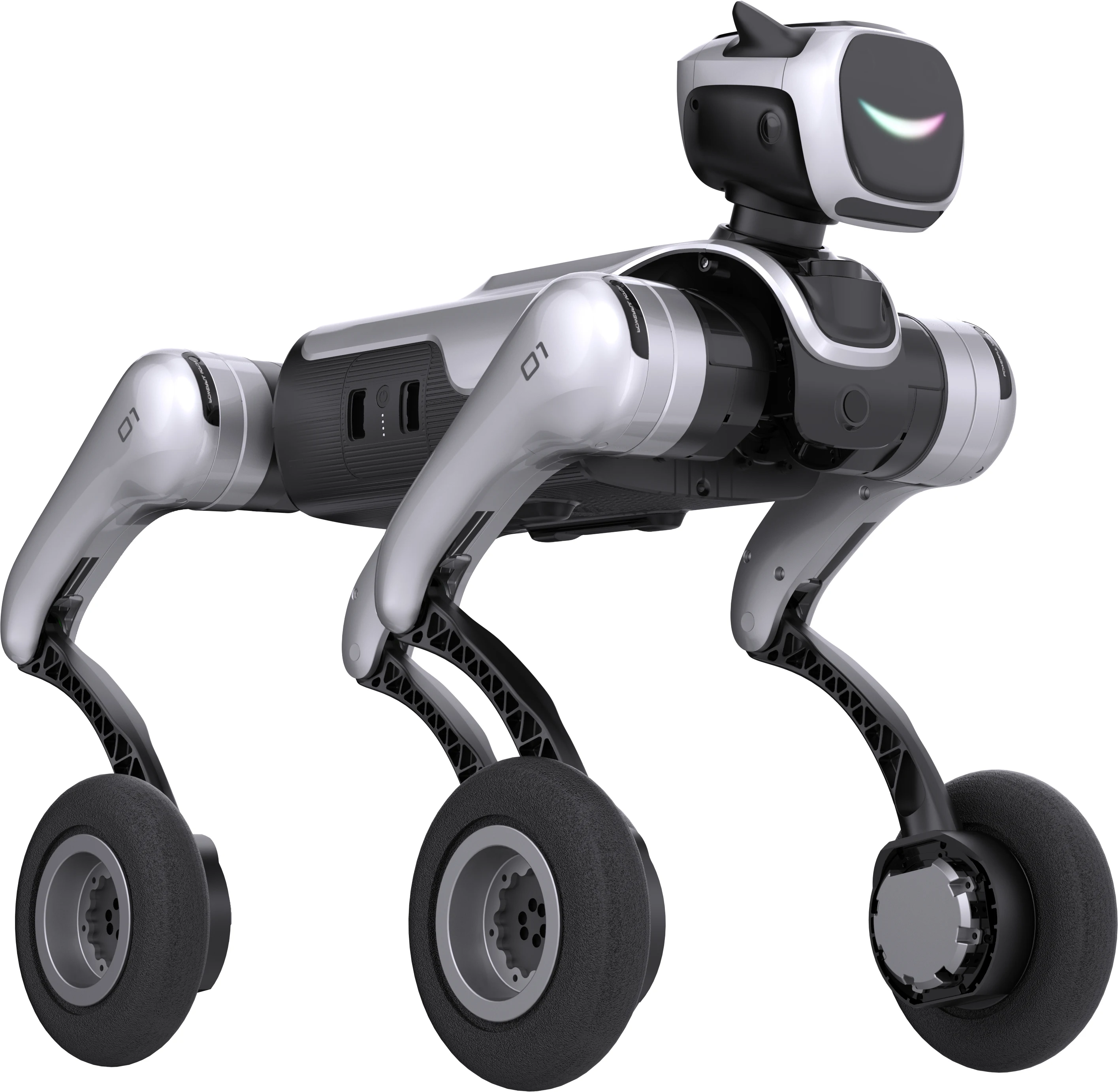

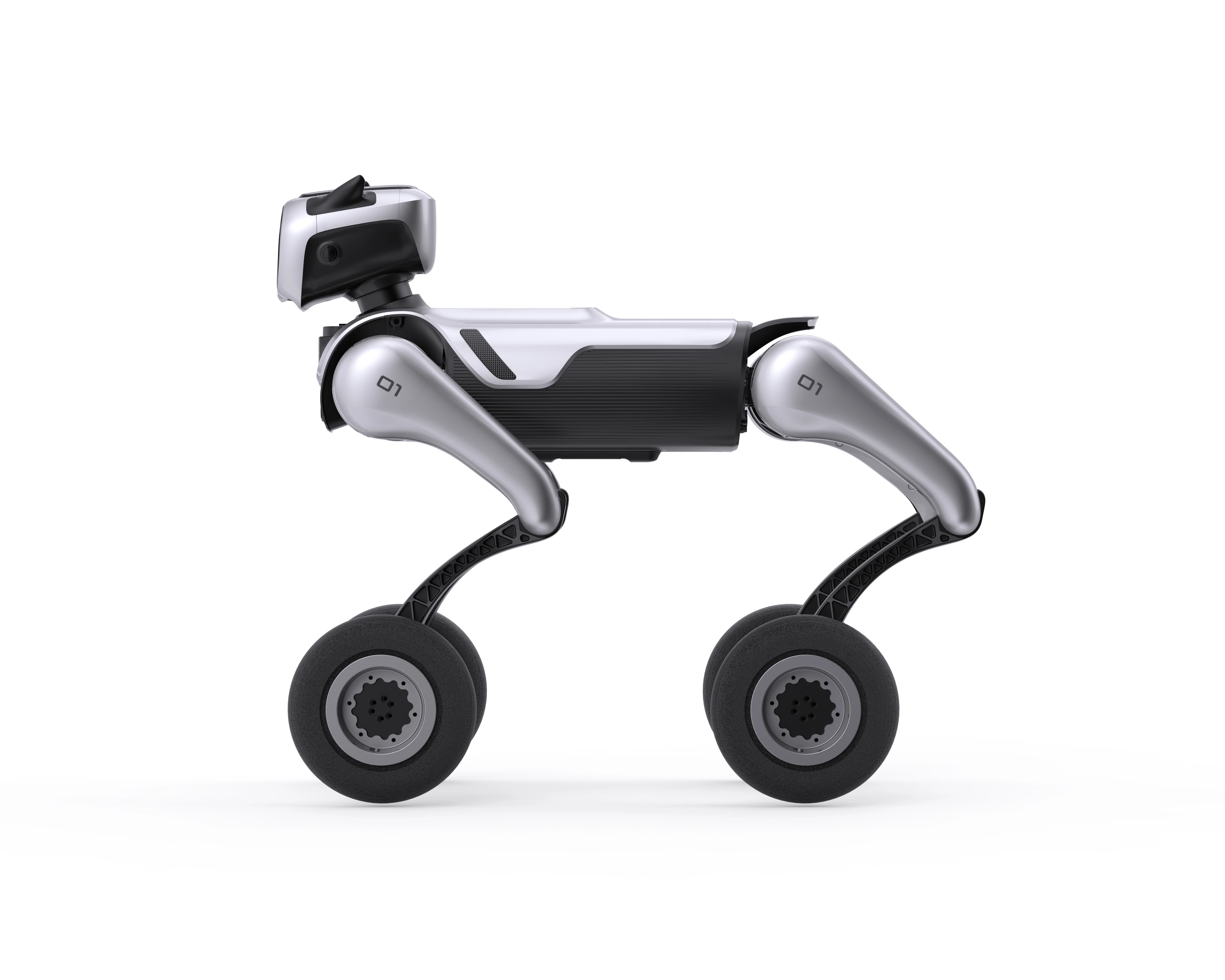

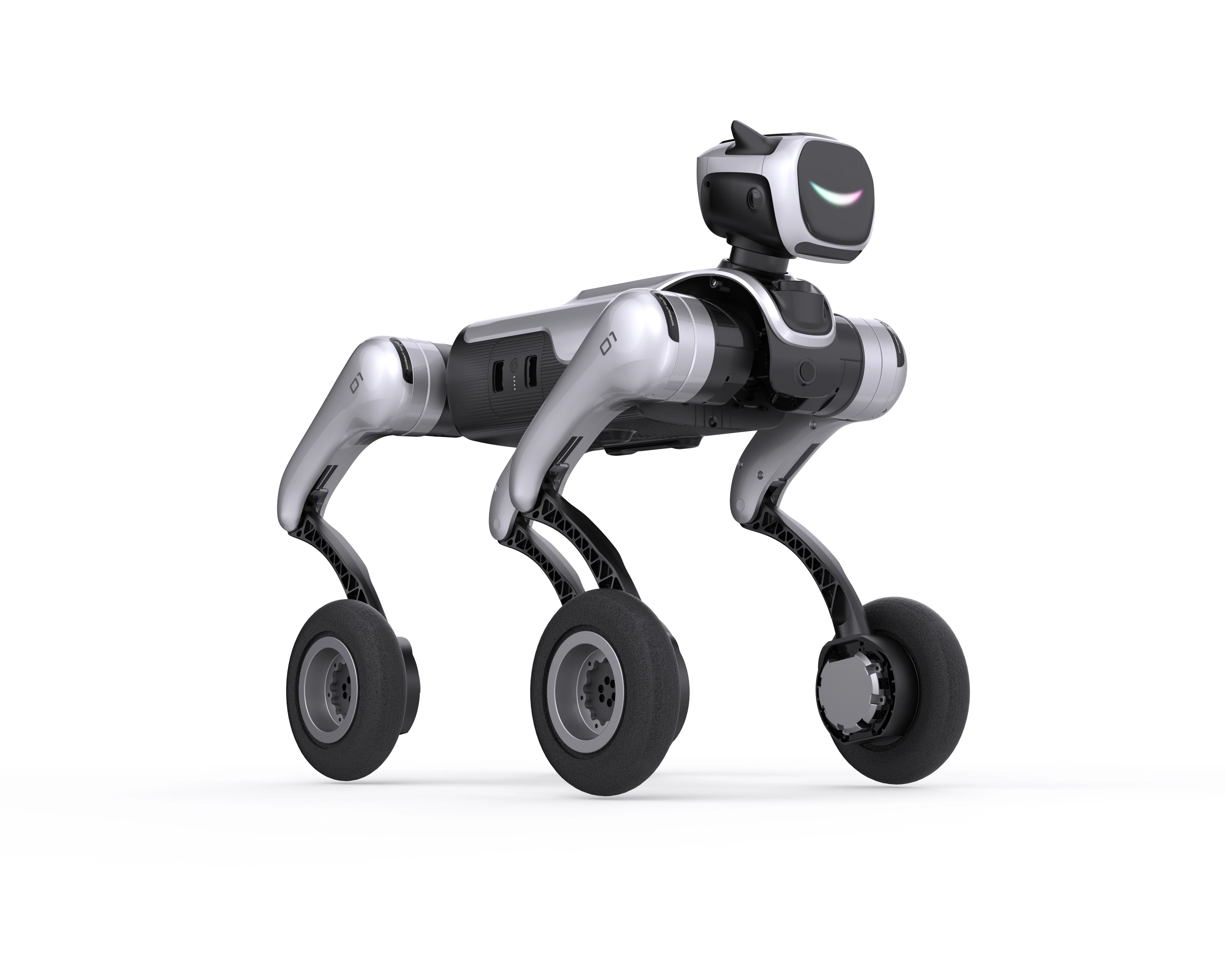

1 × MagicLab MagicDog-W Wheel-Legged Quadruped Robot
1 × Rechargeable High-capacity Battery
1 × Battery Charger / Power Adapter
1 × Remote Controller
1 × User Manual & Quick Start Guide
1 × Tool Kit for Basic Setup and Maintenance
1 × USB / Data Cable for Programming and Connectivity
| Specifications | MagicDog-W | |
|---|---|---|
| Mechanical Parameters | Standing Dimensions | 670*350*650mm |
| Prone Dimensions | 720*500*290mm | |
| Material Information | Aluminum Alloy + High-Strength Engineering Plastic | |
| Tire Type and Size | 7-inch Pneumatic Tire | |
| Motor Number | 16+1 (Head Motor) | |
| Head Rotation Angle | ≥ 100° | |
| Maximum Joint Torque | 37.5 N·m | |
| Total Weight | 22.5 kg (with battery) | |
| Payload | Maximum 10 kg | |

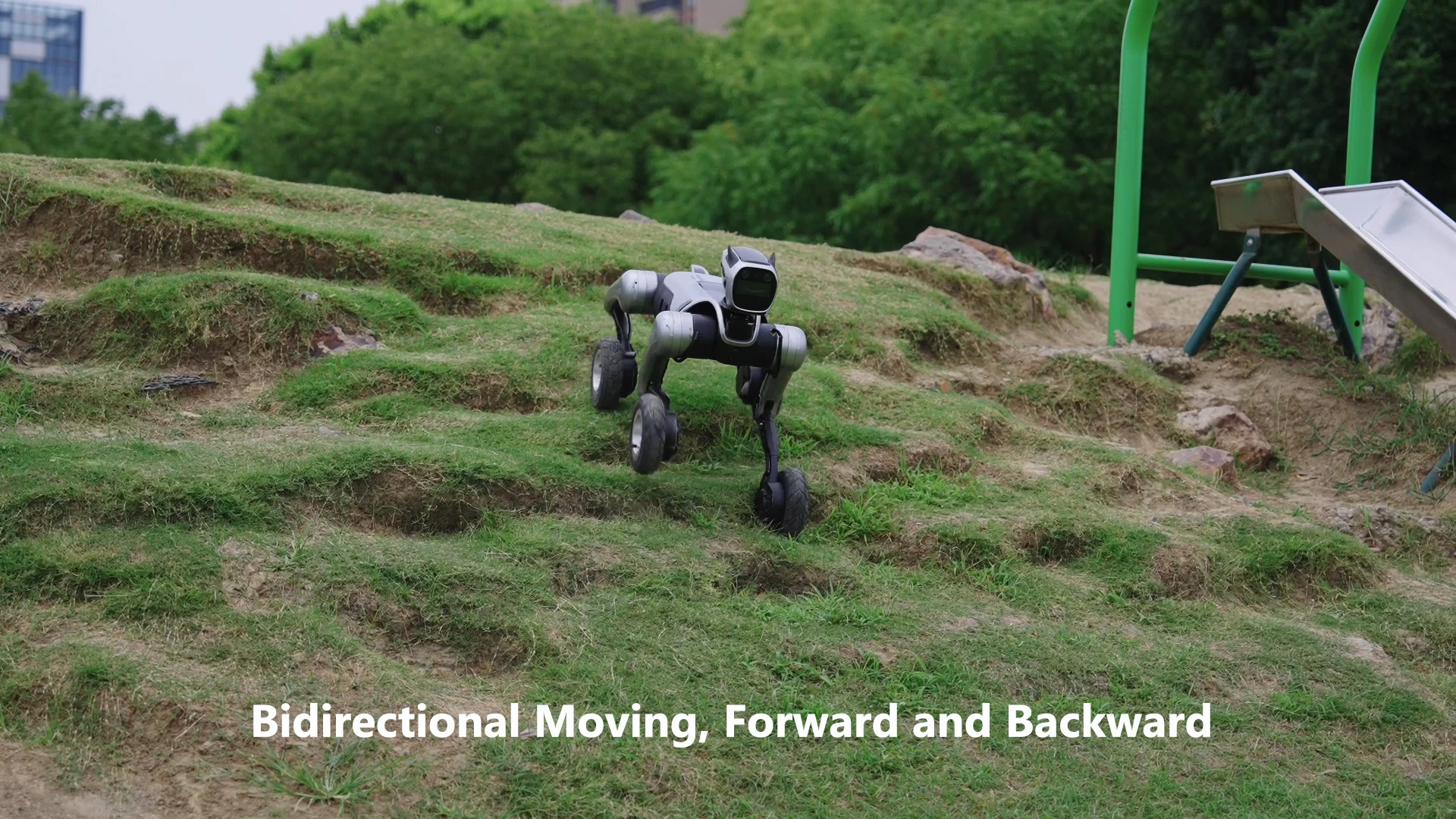

| Motion Speed | 0-3 m/s | |
| Minimum obstacle clearance height | ＜ 60 cm | |
| Maximum slope angle | ≤ 40° | |
| Electrical Parameters | Ontological computing power | 6TOPS |

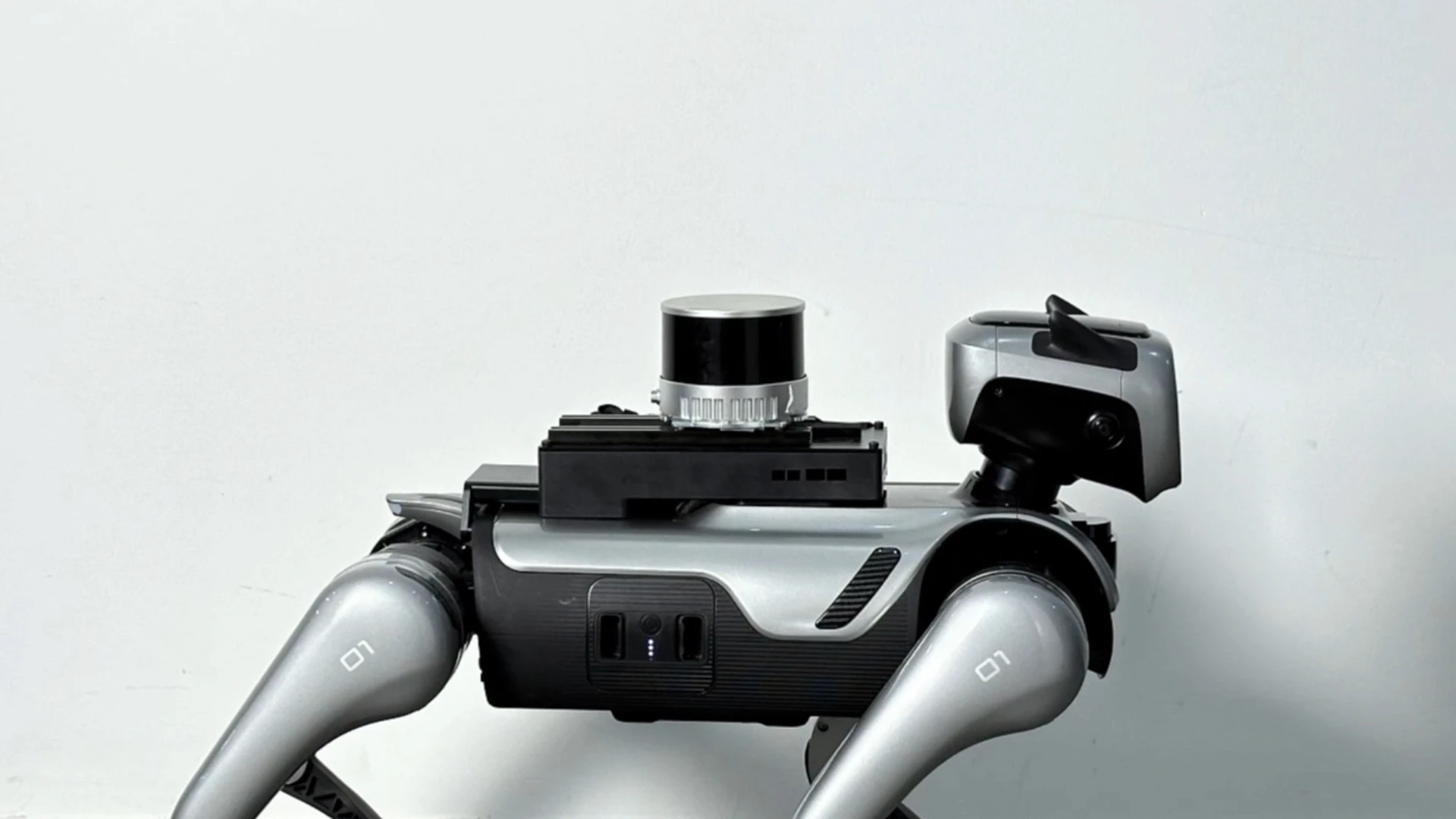

| Sensors | 2D LiDAR + Dual Camera + Depth Camera + 4K HD Camera + Fisheye Camera + Ultrasonic Sensors | |
| Audio Module | Omnidirectional Microphone, Speaker | |
| Communication Module | WiFi 5, 4G Module, BT 5.0 | |
| Touch Perception | Touch Sensors | |
| Touch Feedback | Supports ≥4 touch methods. The robot’s head provides corresponding facial. | |

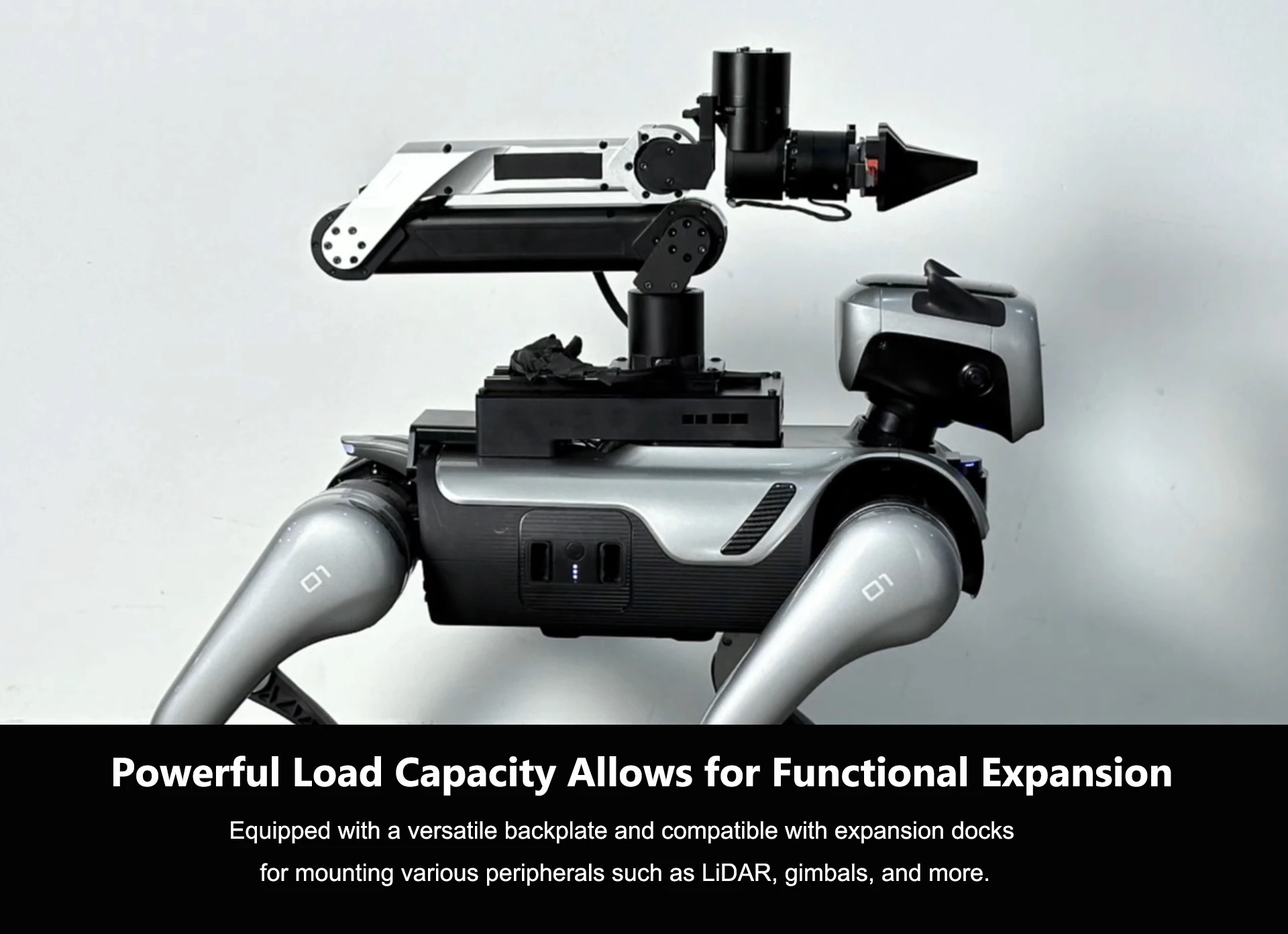

| Accessories | Expansion Modules | Standard High-Performance Computing Accelerator Module |
| Battery | Capacity: 8200 mAh, Rated Voltage: 29.6 V | |
| Other | Facial Expression Display | 24 |
| Battery Life | 2-4 h | |
| Standby Time | Up to 8 hours (tested) | |
| OTA Upgrade | Support | |
| Operating Temperature Range | -5° ~ 40° |
